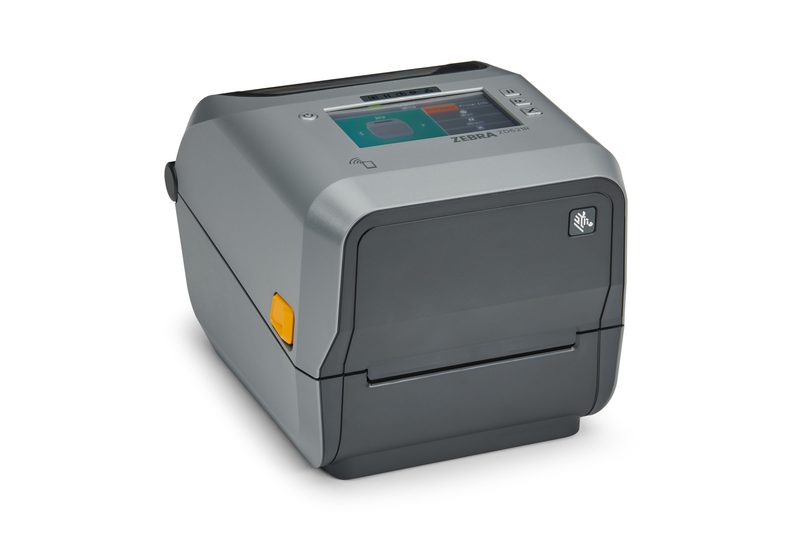

Zebra® ZD621R UHF RFID Printer
Premium desktop thermal transfer 4-inch wide RFID printer with a 4.3-inch full-colour touch display
ZD621R
The ZD621R is a Zebra® UHF RFID label printer supplied by JNXRFID to the manufacturer's published specification. It prints and encodes labels in one pass, so the label data and the chip are written at the same station rather than in two.
- Thermal Transfer/Direct Thermal
- 203 or 300 dpi
- 4.3-inch colour touch display
- Wi-Fi 6 with Bluetooth 5.3 (optional)
Key Features
- Print technology
- Thermal Transfer/Direct Thermal, so one printer covers both heat-sensitive and durable labels.
- Print speed
- 6 ips (152 mm/s) and 8 ips (203 mm/s), depending on resolution.
- Print resolution
- 203 dpi (8 dot/mm) and 300 dpi (12 dot/mm).
- Display
- 4.3-inch full-colour LCD touch display with an intuitive menu, standard on the model, for setup and status without a host PC.
- Wireless connectivity
- Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional), Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional), and Bluetooth Low Energy.
- RFID
- Optimized to print and encode RFID labels in one pass, giving tracking and visibility without a separate encode step.
- Media handling options
- Dispenser/peeler and cutter available as options.
Specifications
| Print technology | Thermal Transfer/Direct Thermal |
|---|---|
| Print resolution | 203 dpi (8 dot/mm), 300 dpi (12 dot/mm) |
| Print speed | 6 ips (152 mm/s), 8 ips (203 mm/s) |
| Display | 4.3-inch full-colour LCD touch display |
| Wireless connectivity | Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional); Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional); Bluetooth Low Energy |
| Media handling options | Dispenser/peeler (optional), cutter (optional) |
Manufacturer-stated figures for this model, from the Zebra product page and specification sheet. Where the manufacturer does not publish a value it is left out rather than estimated.
Applications
- Receiving and put-away labelling
- Cycle counting and asset labelling
- In-store back-office labelling
- Print-and-encode at the workstation
Typical vertical markets: Manufacturing, Transportation and Logistics, Retail, Healthcare.
What to check before you specify the ZD621R?
The Zebra® ZD621R is supplied by JNXRFID to the manufacturer's published specification. The answers below cover the questions integrators ask most often before specifying a print-and-encode printer.
What does the Zebra ZD621R print?
It prints and encodes UHF RFID labels in one pass. Print technology is thermal transfer and direct thermal, at 203 or 300 dpi, so it covers both heat-sensitive media and durable labels that need a ribbon.
What resolution should I specify?
Two options: 203 dpi (8 dot/mm) for the fastest throughput at 8 ips (203 mm/s), or 300 dpi (12 dot/mm) for small or data-dense labels at 6 ips (152 mm/s). Choose 300 dpi when the label carries micro text or small codes rather than a large barcode.
Does it need a host computer to set up?
No. A 4.3-inch full-colour LCD touch display with an intuitive menu is standard on the model, so setup and status checks are done on the printer itself.
What connectivity does it offer?
Wi-Fi 6 (802.11ax) with Bluetooth 5.3 as an option, Wi-Fi 5 (802.11ac) with Bluetooth 4.2 as an option, and Bluetooth Low Energy.
Where is the Zebra ZD621R normally used?
It is used for receiving and put-away labelling, cycle counting and asset labelling, in-store back-office work, and any print-and-encode task at a workstation. Typical vertical markets are manufacturing, transportation and logistics, retail and healthcare.
Can the Zebra ZD621R be evaluated before a volume order?
Yes. It can be arranged as a single evaluation unit before volume orders, so the printer can be run against your own labels and inlay placement first. Use the Request a Quote button for current lead time and evaluation terms.
Ready to evaluate ZD621R?
Request a quote, evaluation terms, or a technical consultation.
