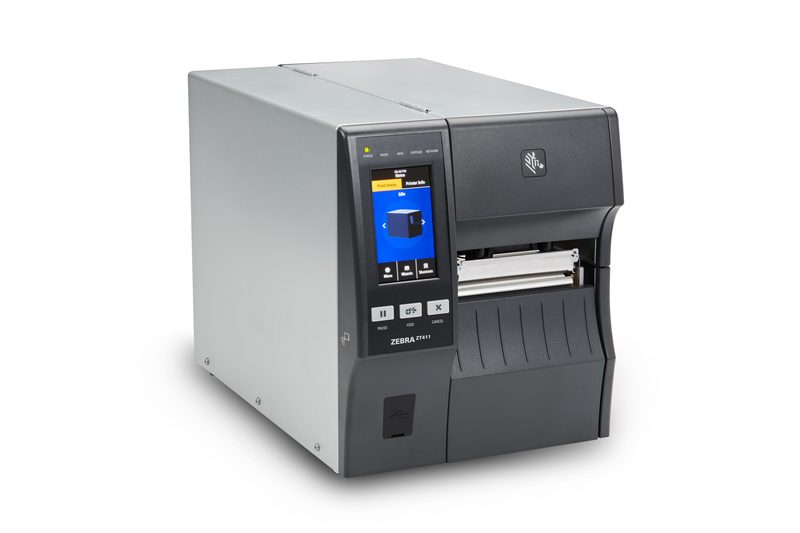

Zebra® ZT411 UHF RFID Printer
Industrial 4-inch UHF RFID printer with an on-metal option and up to 600 dpi resolution
ZT411
The ZT411 is a Zebra® UHF RFID label printer supplied by JNXRFID to the manufacturer's published specification. It prints and encodes labels in one pass, so the label data and the chip are written at the same station rather than in two.
- RFID print-and-encode encoder
- 203 / 300 / 600 dpi
- Up to 14 ips (356 mm/s)
- On-metal RFID option
Key Features
- RFID encoding
- Integrated RFID reader/encoder that is user-upgradable in the field, and prints and encodes tags with a minimum pitch of 0.6 in. (16 mm).
- On-metal option
- An optional field-upgradeable on-metal version is available for the ZT411, and the manufacturer describes it as the only dedicated option in this class for printing and encoding on-metal tags and labels.
- Resolution
- 203 dpi/8 dots per mm, 300 dpi/12 dots per mm optional, and 600 dpi/24 dots per mm optional on the ZT411.
- Print speed
- Up to 14 ips/356 mm per second for the ZT411.
- Display
- 4.3-inch colour touch display with an intuitive menu for operation and settings management.
- Construction
- Metal frame and bi-fold metal media cover with an enlarged clear viewing window, plus a side-loading supplies path for media and ribbon.
- Adaptive encoding
- Adaptive encoding technology removes complex RFID placement guidelines, and variable inlay placement supports a range of inlay positions for media flexibility.
Specifications
| Resolution | 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional); 600 dpi/24 dots per mm (optional, ZT411 only) |
|---|---|
| Maximum print speed | 14 ips/356 mm per second |
| Maximum print width | 4.09 in./104 mm |
| Print length | 203 dpi: 157 in./3988 mm; 300 dpi: 73 in./1854 mm; 600 dpi: 39 in./991 mm |
| Memory | 256 MB SDRAM memory; 512 MB on-board linear Flash memory |
| Media sensors | Adjustable dual media sensors: transmissive and reflective |
| Media width | 1.00 in./25.4 mm to 4.5 in./114 mm (tear/cutter); 1.00 in./25.4 mm to 4.25 in./108 mm (peel/rewind) |
| Maximum media roll size | 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core |
| Media thickness | 0.0023 in./0.058 mm to 0.010 in./0.25 mm; on-metal option up to 0.059 in./1.5 mm |
| Ribbon standard length | 1476 ft./450 m |
| Ribbon width | 2.00 in./51 mm to 4.33 in./110 mm |
| Minimum RFID tag pitch | 0.6 in./16 mm |
| RFID protocols | UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols |
| Dimensions (closed) | 19.5 in. L x 10.6 in. W x 12.75 in. H (495 mm L x 269 mm W x 324 mm H) |
| Weight | 36 lbs./16.33 kg |
| Operating temperature | Thermal transfer: 5°C to 40°C; Direct thermal: 0°C to 40°C |
| Storage/transport temperature | -40°C to 60°C |
| Operating humidity | 20% to 85% non-condensing |
| Print methods | Thermal transfer and direct thermal printing |
| Communications | USB 2.0 high-speed, RS-232 serial, 10/100 Ethernet, Bluetooth 4.1, dual USB host |
| Display | 4.3-inch colour touch display |
Manufacturer-stated figures for this model, from the Zebra product page and specification sheet. Where the manufacturer does not publish a value it is left out rather than estimated.
Applications
- Manufacturing receiving and put-away labelling
- Order picking and packing
- On-metal asset and container tagging
- Healthcare asset management and tagging
Typical vertical markets: Manufacturing, Transportation and Logistics, Retail, Healthcare.
What to check before you specify the ZT411?
The Zebra® ZT411 is supplied by JNXRFID to the manufacturer's published specification. The answers below cover the questions integrators ask most often before specifying a print-and-encode printer.
Can the Zebra ZT411 print and encode on-metal tags?
Yes, and this is the model to specify when that is the job. An optional field-upgradeable on-metal RFID version is available for the ZT411, and the manufacturer describes it as the only dedicated option in this class for printing and encoding on-metal tags and labels. Media thickness for the on-metal option goes up to 0.059 in./1.5 mm, against 0.010 in./0.25 mm for standard media.
What resolutions are available?
203 dpi/8 dots per mm as standard, 300 dpi/12 dots per mm optional, and 600 dpi/24 dots per mm optional on the ZT411. The 600 dpi option is noted as not available on the field-installable on-metal RFID kit, so a machine that needs both should be specified with the 600 dpi head in mind.
How fast does it print?
Up to 14 ips/356 mm per second at standard configuration. Print length varies by resolution: 157 in./3988 mm at 203 dpi, 73 in./1854 mm at 300 dpi and 39 in./991 mm at 600 dpi.
How small a tag can it print and encode?
The manufacturer states a minimum pitch of 0.6 in./16 mm. It supports UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols, and it is compliant with the Global RFID radio for multinational deployments.
Does the RFID reader need replacing between projects?
The integrated RFID system is user-upgradable in the field. Adaptive encoding technology is used to remove complex placement guidelines, variable inlay placement supports a range of inlay positions, and industry-standard multi-vendor chip-based serialization (MCS) is supported.
What is it built for, physically?
A metal frame with a bi-fold metal media cover and an enlarged clear viewing window, a side-loading supplies path, and a 4.3-inch colour touch display. Closed dimensions are 495 mm L x 269 mm W x 324 mm H and it weighs 16.33 kg. It is ENERGY STAR qualified.
Can the Zebra ZT411 be evaluated before a volume order?
Yes. It can be arranged as a single evaluation unit before volume orders, so the printer can be run against your own label stock first. Use the Request a Quote button for current lead time and evaluation terms.
