JNXRFID RFID Printers
Desktop RFID label printers for reliable UHF and HF tag encoding, verification, and on-demand issuance.
See JNXRFID Printers in Action
Watch real-time RFID label encoding, tag verification, and on-demand issuance with JNXRFID desktop and industrial printers.
Printer Selection Guide
Which RFID Printer Is Right for You?
Whether you need UHF for retail logistics or HF for secure authentication — choose your RFID type first, then pick the form factor that matches your daily volume.
Step 1: Choose Your RFID Frequency
| UHF (860 – 960 MHz) | HF / NFC (13.56 MHz) | |
|---|---|---|
| Read Range | 1 – 6 meters | < 10 cm (near-field) |
| Bulk Reading | Hundreds of tags simultaneously | One tag at a time |
| Typical Applications | Retail inventory, supply chain, asset tracking, logistics, warehouse | Anti-counterfeiting, authentication, access control, contactless payments, library |
| Compatible JNXRFID Models | JD240TR · JT240TR · T430R | JD240THR · JT240THR |
| Zebra Equivalent | ZD621R UHF | No HF version available |
Step 2: Choose Your Form Factor
| T430R | JD240TR / JD240THR | JT240TR / JT240THR | |
|---|---|---|---|
| Positioning | Entry-level | Desktop Workhorse | Industrial High-Volume |
| Daily Label Volume | < 500 | < 2,000 | 5,000+ |
| Print Resolution | 203 / 300 dpi | 300 / 600 dpi | 203 / 300 / 600 dpi |
| Media Thickness | Standard labels (60–250 µm) | Up to 1.5 mm — supports on-metal tags | Up to 1.5 mm — supports on-metal tags |
| Display | LED indicators | LED indicators | 4.3″ IPS touchscreen |
| Dimensions (mm) | 308 × 250 × 180 | 208 × 310 × 195 | 299 × 410 × 270 |
| Weight | 2.85 kg | 2.85 – 2.95 kg | 12.5 kg |
| Zebra Equivalent | ZD220 | ZD621R | ZT231R |
Competitive Comparison
JNXRFID JD240TR vs the ZD621R
How our desktop RFID printer compares to the category standard — transparent so you can make an informed decision.
| Feature | Zebra ZD621R | JNXRFID JD240TR / JD240THR |
|---|---|---|
| RFID Type | UHF only — no HF version | UHF (JD240TR) or HF (JD240THR) — exclusive |
| Print Resolution | 203 / 300 dpi | 300 / 600 dpi |
| Print Width | 4-inch (104 mm) | 4-inch (104 mm) |
| Max Media Thickness | 0.305 mm | 1.5 mm — prints on-metal RFID tags directly |
| RFID Protocols | EPC Gen2 V2, ISO 18000-6C, ISO 15693 | EPC Gen2, ISO 18000-6C, ISO 15693 / 14443A |
| Label Design Software | ZebraDesigner — paid license required | LabelSoft — FREE, permanently included |
| Developer SDK | Link-OS SDK (Zebra proprietary) | Free developer SDK |
| Standard Warranty | 1 year | Flexible — negotiable terms |
| Minimum Order | Channel-restricted | Low minimum — order what you need |
| Evaluation Unit | Limited availability | Available on request |
| 3-Year TCO Estimate | Baseline | Significantly lower |
Key differentiator: ZD621R has no HF/NFC version. For anti-counterfeiting, authentication, and secure NFC applications, JNXRFID JD240THR is the only desktop-class option. JNXRFID printers are compatible with standard RFID encoding workflows and work with common RFID label media. Contact us to discuss your specific requirements or request an evaluation unit.
RFID Printer Lineup
Encode, Print & Verify in One Pass
UHF RFID Printer
JD240TR
Desktop UHF RFID printer for retail tag encoding. Free LabelSoft design software. Prints on-metal tags up to 1.5mm thickness. 600 dpi option available.
HF RFID Printer
JD240THR
Desktop HF/NFC RFID printer for anti-counterfeiting and authentication. Free LabelSoft design software. Prints on-metal tags up to 1.5mm. 600 dpi option available.
RFID Printer
T430R
Entry-level UHF RFID printer. The most affordable option for light-volume tag encoding. Compact footprint, easy to deploy.

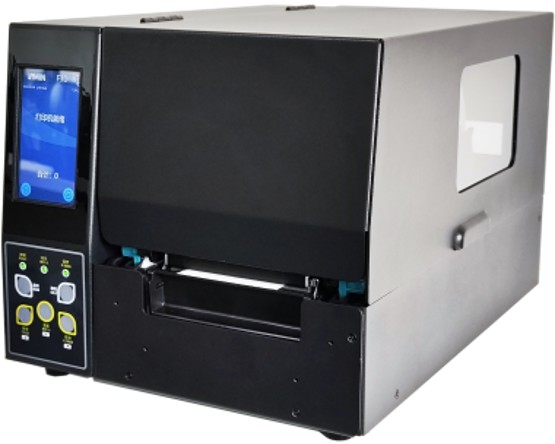

UHF RFID Printer
JT240TR
Industrial UHF RFID printer for high-volume encoding. 4.3″ IPS touchscreen. Prints on-metal tags up to 1.5mm thickness. 600 dpi option available.
HF RFID Printer
JT240THR
Industrial HF/NFC RFID printer for high-volume secure tagging. 4.3″ IPS touchscreen. Prints on-metal tags up to 1.5mm thickness. 600 dpi option available.
Technical resources
Free technical guides for this decision
Before you compare specifications, it is worth knowing which specifications actually decide the outcome. Both of our buyer-education guides are free and vendor-neutral.
- The fifteen myths — the assumptions that produce the most expensive wrong purchases in RFID labelling
- Six numbers that change decisions — six figures worth checking against any quotation you are given
Free PDFs, no registration: UHF RFID Printer-Encoders: A Buyer's Guide (33 pages) · Tagging Metal Assets with UHF RFID (18 pages).
FAQ
Frequently Asked Questions
Straight answers drawn from the comparison table above.
What is the difference between UHF and HF / NFC RFID printing?
UHF (860 – 960 MHz): 1 – 6 meters · HF / NFC (13.56 MHz): < 10 cm (near-field)
How many labels per day is each JNXRFID printer rated for?
T430R: < 500 · JD240TR / JD240THR: < 2,000 · JT240TR / JT240THR: 5,000+
What print resolution does each JNXRFID printer offer?
T430R: 203 / 300 dpi · JD240TR / JD240THR: 300 / 600 dpi · JT240TR / JT240THR: 203 / 300 / 600 dpi
Which JNXRFID printers handle on-metal or thick RFID media?
JD240TR / JD240THR, JT240TR / JT240THR.
What display does each JNXRFID printer have?
T430R: LED indicators · JD240TR / JD240THR: LED indicators · JT240TR / JT240THR: 4.3″ IPS touchscreen
How do I get help choosing the right model?
Send us the tag type, read zone and environment. JNXRFID shortlists the models that fit, explains the trade-offs, and supplies a single evaluation unit before volume orders. Contact us for current lead time and evaluation terms.
Need RFID labels or a printing solution?
Tell us about your tag type, volume, and workflow. We'll recommend the right printer and media setup.
Speak to an Expert
