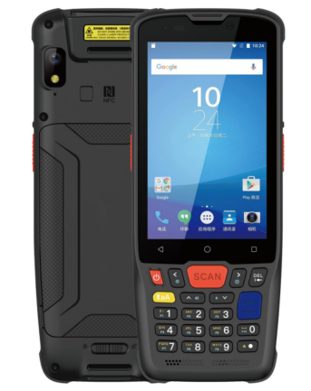

JMD63C
Keypad mobile computer with 30-hour battery for multi-shift operations — Datalogic ultra-rapid scanning, 20-key numeric keypad, IP65 ruggedness, Android 14.
Why Choose JMD63C
Built for Multi-Shift, Cost-Sensitive Deployments
Longer runtime, higher reliability, and lower total cost of ownership — a cost-optimized design that prioritizes operational efficiency over unnecessary complexity.
30-Hour Battery
5000mAh replaceable battery supports up to 30 hours of continuous operation — true multi-shift usage without recharging or device rotation.
20-Key Numeric Keypad
Physical keypad with dedicated scan and function keys — faster input than touchscreens when wearing gloves or working in cold storage.
Datalogic Scan Engine
Ultra-rapid decoding: <30ms (1D) and <60ms (2D), with +25% low-light and damaged-code sensitivity.
IP65 Rugged
1.5m drops (30x), 1.8m drops with case (60x), and 2000x 0.5m tumbles — metal frame with impact-resistant housing.
JMD63C
Ideal For —
- Multi-shift warehouse and logistics operations
- Cold storage and glove-required environments
- Cost-sensitive large-fleet deployments
⚠️ Consider Alternatives If —
- You need a large touchscreen form factor → JMD94C
The JMD63C is designed to optimize operational efficiency — delivering longer runtime, higher reliability, and lower total cost of ownership in warehouse, logistics, and manufacturing environments.
Built on a stable Android 14 platform with a durable keypad design, it delivers consistent performance for data capture and task execution. Its Datalogic third-generation scan engine provides fast and reliable barcode decoding (<30ms for 1D, <60ms for 2D), while the 5000mAh replaceable battery supports up to 30 hours of continuous operation — enabling full multi-shift usage without interruption.
A 100 dB speaker and dual-microphone noise reduction keep communication clear in genuinely noisy industrial environments. Multiple memory options, SIM + TF expansion, cradle docks, and straps support scalable deployment.
Key Features
- True Multi-Shift Runtime
- Up to 30 hours continuous operation on a 5000mAh replaceable battery — no mid-shift charging or device rotation.
- Glove-Friendly Keypad
- 20-key numeric keypad with dual scan keys, back key, and power key for fast, reliable input.
- Datalogic Ultra-Rapid Scanning
- <30ms (1D) / <60ms (2D) decode with +25% sensitivity improvement on low-light and damaged codes.
- Rugged & Reliable
- IP65 sealed, 1.8m drop protection with case, 2000x tumbles, 8kV/15kV ESD protection.
- Clear Communication
- 100 dB speaker output with dual-microphone noise cancellation for real industrial environments.
Specifications
| Operating System | Android 14 |
|---|---|
| Processor | Octa-core 2.0GHz (2xA75 + 6xA55) |
| Memory | RAM: 3GB / 4GB |
| Storage | Flash: 32GB / 64GB; TF Card up to 256GB |
| Display | 4-inch IPS, 800x480 resolution |
| Touch Panel | GFF capacitive touch, multi-touch |
| Scan Engine | Datalogic ultra-rapid 1D/2D, <30ms (1D), <60ms (2D) |
| Camera (Rear) | 8MP, Auto Focus, Flash |
| Camera (Front) | 5MP (optional), Fixed Focus |
| Speaker | 100 dB output |
| Microphone | Dual microphone with noise cancellation |
| Bluetooth | BLE V5.0 |
| NFC | Optional NFC 13.56 MHz |
| GPS | GPS / GLONASS / Galileo, Assisted GPS |
| WLAN | IEEE 802.11 a/b/g/n/ac dual-band Wi-Fi, IPv4/IPv6 |
| WWAN | 2G / 3G / 4G |
| SIM | Nano SIM x 1 |
| Battery | 5000mAh, replaceable |
| Adapter | 5V / 2A, AC 100–240V, 50/60Hz |
| IP Rating | IP65 |
| Drop Protection | 1.5m (30x); 1.8m (60x with case); 2000x 0.5m tumbles (no case); 3000x (with case) |
| Weight | 279g (including battery) |
| Dimensions | 165.86 x 67 x 19.22 mm |
| Operating Temp | -25°C to 55°C |
| Storage Temp | -30°C to 70°C |
| Humidity | 5%–95% non-condensing |
| ESD Protection | 8kV / 15kV |
| Keypad | 20-key numeric, dual scan keys, back key, power key |
Applications
- Warehousing: Inventory counts, picking, put-away, and cycle counting across multiple shifts.
- Logistics & Delivery: Proof of delivery, asset scan-in/out, and route operations with all-day battery.
- Manufacturing: Work-in-process tracking and material verification in demanding environments.
Cost-optimized for operational efficiency over unnecessary complexity. Request an evaluation unit.
FAQ
JMD63C Questions, Answered
Straight answers drawn from the specification table above.
Which operating system does the JMD63C run?
Android 14
What processor does the JMD63C use?
Octa-core 2.0GHz (2xA75 + 6xA55)
Which scan engine does the JMD63C use?
Datalogic ultra-rapid 1D/2D, <30ms (1D), <60ms (2D)
What battery does the JMD63C use?
5000mAh, replaceable
What are the dimensions of the JMD63C?
165.86 x 67 x 19.22 mm
Can the JMD63C be evaluated before a volume order?
Yes. The JMD63C is available as a single evaluation unit before volume orders, with customization available on request. Contact us for current lead time and evaluation terms.
