RFID Portals and Gate Readers
Ten JNXTECH portal and tunnel systems for reading tags as people, totes, boxes and pallets pass through a controlled point - grouped here by form factor so you can start from the gateway you actually have.
Group 1 of 3
Freestanding and Wall-Mounted Portals
Gate readers for entrances, aisles and warehouse checkpoints. Wall-mounted and freestanding housings cover anything from a narrow aisle doorway to a tall warehouse lane; the arch and display variants add local alerting and on-site readout.
JNR-E01
Compact wall-mounted portal for narrow spaces such as warehouse aisles, with network backhaul and optional Wi-Fi or 4G, infrared-triggered reading and full coverage of the gateway zone
Dimensions: 1690 (H) × 176 (D) × 57.5 (W) mm

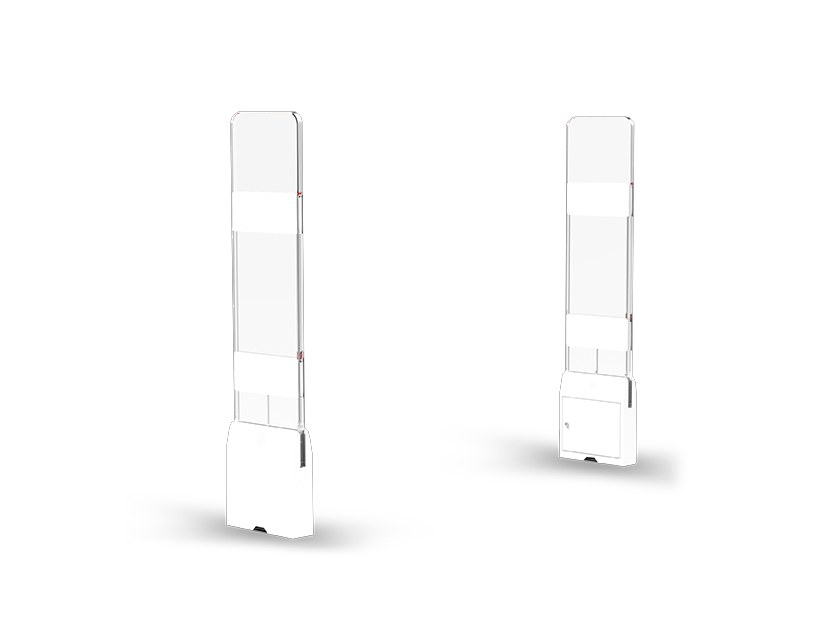

JNR-E06N
Freestanding portal with a transparent acrylic enclosure that keeps sight lines open, with network backhaul plus optional Wi-Fi or RS-232, infrared-triggered reading and full gateway coverage
Dimensions: 340 × 95 × 14600 mm (excluding fittings) · Customization available on request

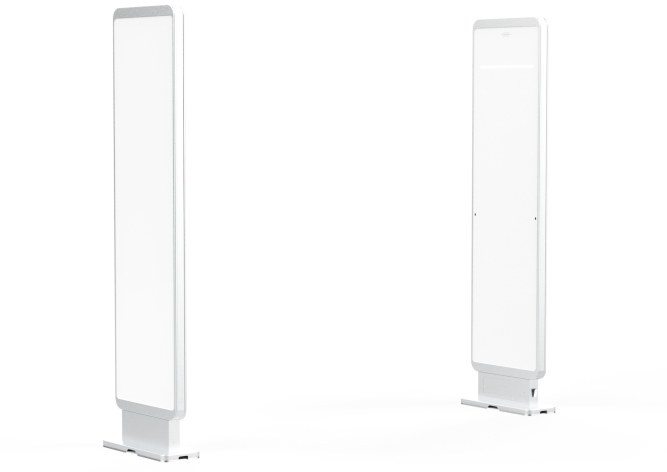

JNR-E09
Freestanding portal with a horizontal narrow-beam antenna design for blind-spot-free gateway coverage, built-in alarm light and buzzer, and infrared or microwave-radar triggering
Dimensions: 1690 (H) × 176 (D) × 57.5 (W) mm · Trigger: Infrared or microwave radar (selectable)

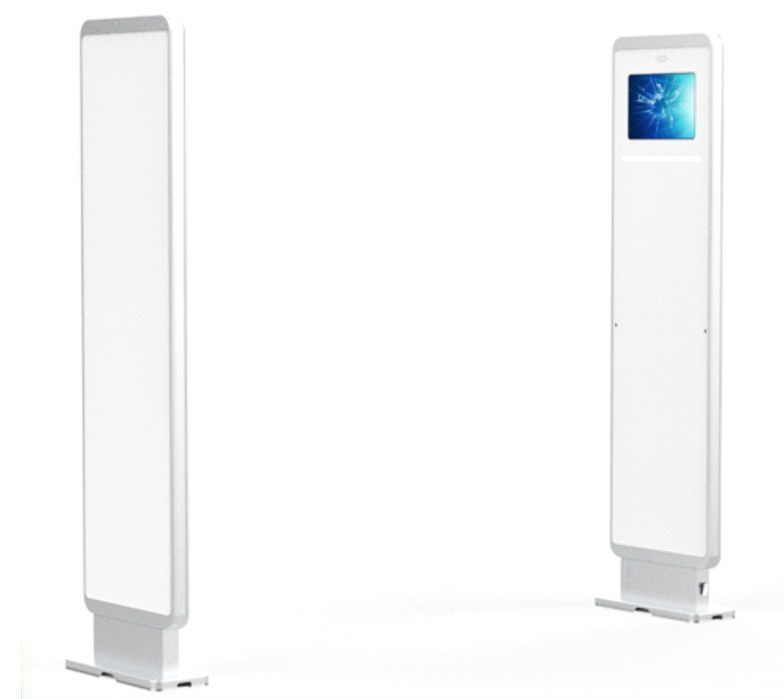

JND-E09A
High-performance UHF portal built on a high-read-rate engine for logistics, access control, apparel, retail, warehousing, anti-counterfeiting and smart-manufacturing lanes, with a 10.1 in. touch display running Android 11
Dimensions: 390 (L) × 45 (W) × 1524 (H) mm · Trigger: Infrared or microwave radar (selectable)

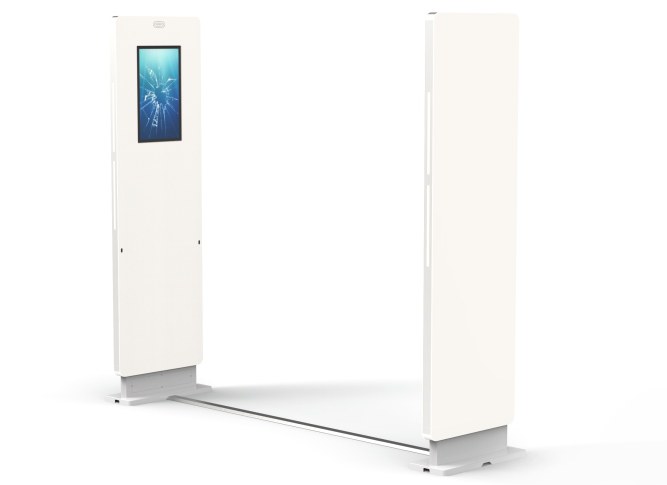

JNR-E20A
Tall warehouse portal with strong multi-tag read rates and a horizontal narrow-beam antenna for blind-spot-free coverage, built-in alarm light and buzzer, and infrared or radar triggering; Android or Windows optional
Dimensions: 585 (L) × 57 (W) × 2053 (H) mm · Trigger: Infrared or microwave radar (selectable)

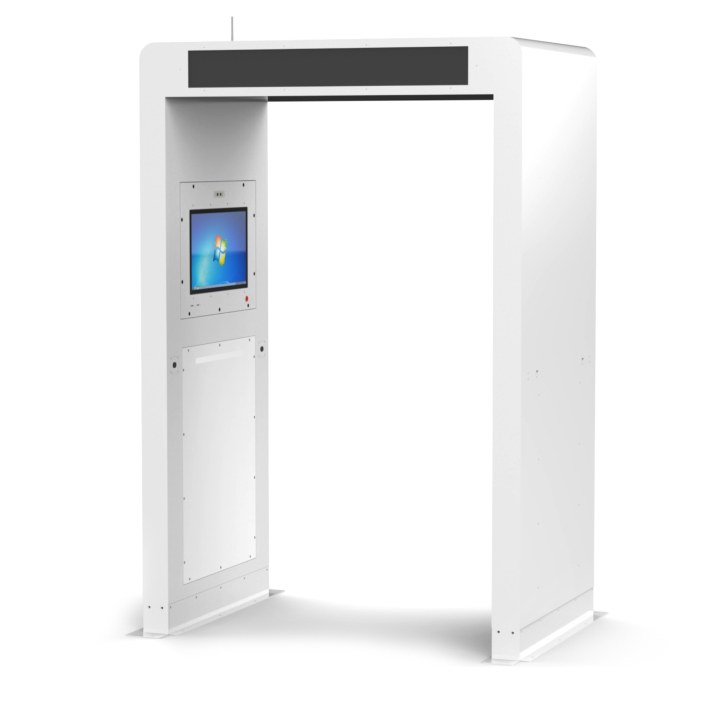

JND-C09W
Arch-style portal with a narrow-beam antenna design, built-in alarm light and buzzer, and an independent LED smart display that shows inbound and outbound counts by zone
Dimensions: 1080 (W) × 1200 (L) × 2200 (H) mm · Trigger: Infrared or microwave radar (selectable)
| JNR-E01 | JNR-E06N | JNR-E09 | JND-E09A | JNR-E20A | JND-C09W | |
|---|---|---|---|---|---|---|
| Dimensions | 1690 (H) × 176 (D) × 57.5 (W) mm | 340 × 95 × 14600 mm (excluding fittings) | 1690 (H) × 176 (D) × 57.5 (W) mm | 390 (L) × 45 (W) × 1524 (H) mm | 585 (L) × 57 (W) × 2053 (H) mm | 1080 (W) × 1200 (L) × 2200 (H) mm |
| Frequency band | 865–868 MHz / 902–928 MHz (region-configurable) | 865–868 MHz / 902–928 MHz (region-configurable) | 865–868 MHz / 902–928 MHz (region-configurable) | 865–868 MHz / 902–928 MHz (region-configurable) | 865–868 MHz / 902–928 MHz (region-configurable) | 865–868 MHz / 902–928 MHz (region-configurable) |
| Trigger | — | — | Infrared or microwave radar (selectable) | Infrared or microwave radar (selectable) | Infrared or microwave radar (selectable) | Infrared or microwave radar (selectable) |
| Display | — | — | — | 10.1 in. capacitive touch display, 1280 × 800 | — | 21.5 in. capacitive touch display, 1920 × 1080 |
| Operating system | — | — | — | — | Android or Windows (optional) | Android or Windows (optional) |
| Interfaces | RS-232, RJ45 | RJ45 | RS-232, RJ45 | RJ45 | RJ45, DB9 | RJ45 or Wi-Fi |
Group 2 of 3
Overhead Integrated Reader
A ceiling- or gantry-mounted all-in-one reader for doorways and overhead read points, with two built-in 8 dBi circularly polarized antennas on an Impinj E710 read engine.

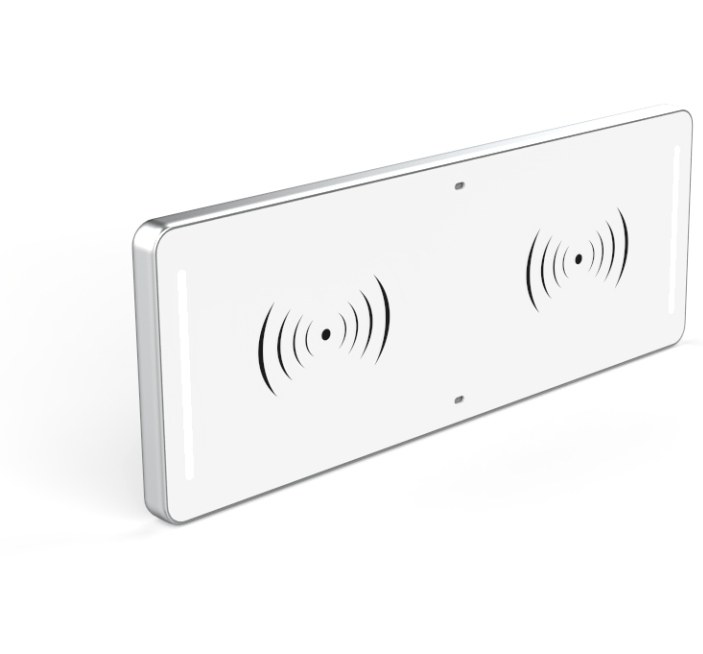

JNR-DE08
Overhead integrated UHF reader with dual built-in 8 dBi circularly polarized antennas and an Impinj E710 read engine, for asset management, smart warehousing and retail loss-prevention lanes
Dimensions: 802 × 302 × 35 mm (±2 mm) · Trigger: Human-presence sensor, infrared or microwave radar (selectable)
| Antenna | Dual 8 dBi circularly polarized antennas |
|---|---|
| Protocols | RS-232, TCP/IP, HTTP/HTTPS, MQTT |
| Hardware interfaces | RS-232, RJ45 |
| Trigger | Human-presence sensor, infrared or microwave radar (selectable) |
| Dimensions | 802 × 302 × 35 mm (±2 mm) |
Group 3 of 3
Read Tunnels
Enclosed and open-frame tunnels for bulk reading. An open-frame tunnel reads totes as staff walk past; the conveyor and pallet tunnels read whole boxes and pallets unattended, with shielding and RF design built to hold read accuracy at the stated rate.

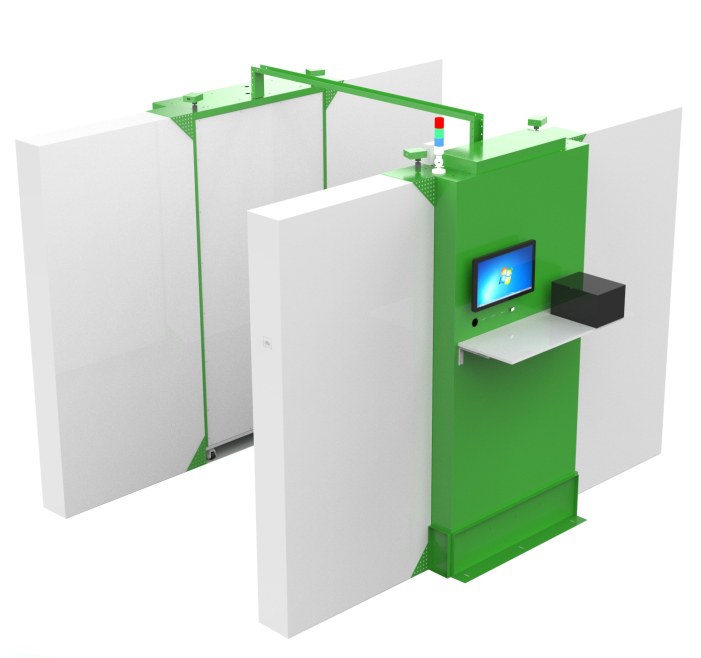

JNI-OC02W-LD
Open-frame tunnel that reads 45 to 90 totes in 4 seconds at walking pace, with electromagnetic shielding and RF tuning for 99.6%+ read accuracy, in/out detection and three-color fool-proof alerting; modular design ships disassembled for fast on-site assembly
Dimensions: 585 (L) × 57 (W) × 2053 (H) mm · Display: 18.5 in. touch display · Customization available on request

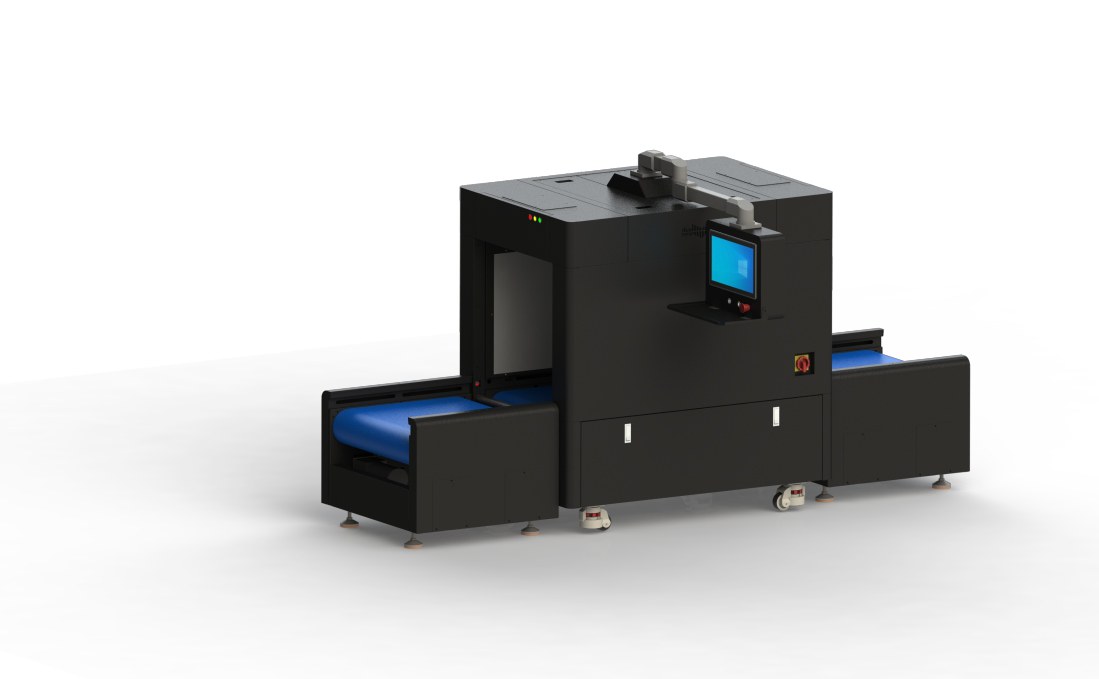

JNC-DW07 Pro
Conveyor tunnel that reads 200+ tags on a single box in 3 seconds, with motion control and electromagnetic shielding for 100% read accuracy, centralized software control with mechanical key backup, and an open SDK with DLL and demo programs for multi-platform integration
Dimensions: 2722 (L) × 890 (W) × 1342 (H) mm · Display: 15.6 in. touch display

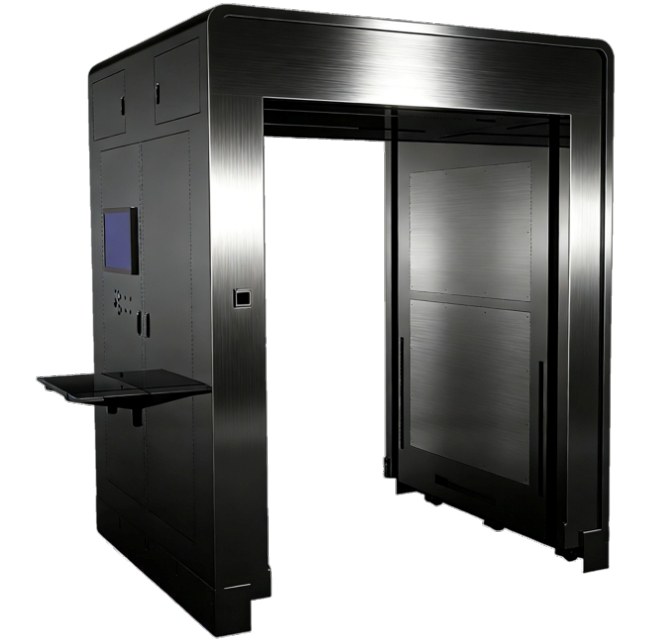

JNC-TP401W
Enclosed pallet-scale tunnel with a 3–5 second single-scan cycle, antenna and RF-reflection design that eliminates dead zones, shielding rated at 99.99% read accuracy, and dual automated roller doors for fully unattended operation
Dimensions: 2100 (L) × 2000 (W) × 2450 (H) mm · Display: 21 in. touch display
| JNI-OC02W-LD | JNC-DW07 Pro | JNC-TP401W | |
|---|---|---|---|
| Dimensions | 585 (L) × 57 (W) × 2053 (H) mm | 2722 (L) × 890 (W) × 1342 (H) mm | 2100 (L) × 2000 (W) × 2450 (H) mm |
| Internal chamber | — | 1200 (L) × 650 (W) × 650 (H) mm | 1600 (L) × 2000 (W) × 1800 (H) mm |
| Frequency band | 902–928 MHz | 902–928 MHz | China band: 920.625–924.375 MHz; US band: 902.75–927.25 MHz |
| Display | 18.5 in. touch display | 15.6 in. touch display | 21 in. touch display |
| Operating system | Windows 10 | Windows 7 | Windows |
| Memory + storage | 8 GB + 128 GB | 8 GB + 256 GB | 4 GB / 8 GB + 128 GB |
| Air interface protocol | — | EPCglobal Class 1 Gen 2 / ISO 18000-6C | EPCglobal Class 1 Gen 2 / ISO 18000-6C |
| Doors | — | — | Dual automated roller doors, shielded |
| Conveyor | — | Industrial chain conveyor, three independently controlled sections | — |
FAQ
Frequently Asked Questions
Straight answers drawn from the comparison table above.
Which frequency bands do the RFID portals support?
865–868 MHz / 902–928 MHz (region-configurable).
Which portals include an integrated display?
JND-E09A, JND-C09W.
Which portals can run Android or Windows?
JNR-E20A, JND-C09W.
Which interfaces do the portals provide?
JNR-E01: RS-232, RJ45 · JNR-E06N: RJ45 · JNR-E09: RS-232, RJ45 · JND-E09A: RJ45 · JNR-E20A: RJ45, DB9 · JND-C09W: RJ45 or Wi-Fi
Which portals support an infrared or microwave radar trigger?
JNR-E09, JND-E09A, JNR-E20A, JND-C09W.
How do I get help choosing the right model?
Send us the tag type, read zone and environment. JNXRFID shortlists the models that fit, explains the trade-offs, and supplies a single evaluation unit before volume orders. Contact us for current lead time and evaluation terms.
Planning a portal or tunnel install?
Tell us what passes through the gate - people, totes, boxes or pallets - and the speed it moves at. We will match the housing, antenna and reader platform.
Contact UsCustomization available on request.
