JNR-E Fixed UHF RFID Readers
Three fixed UHF RFID readers for one job: driving external antennas in installed read zones. They share one RF platform - 865-868 / 902-928 MHz, 0-33 dBm adjustable output, up to 900 tags/s - and differ in the read range they are built for. All three speak EPCglobal Class 1 Gen 2 / ISO 18000-6C.
JNXTECH JNR-E Fixed UHF RFID Readers
The models
JNR-E401N
Fixed UHF RFID reader for a compact read zone, with 900 tags/s peak throughput and RS-232, USB, RS-485 or Wi-Fi backhaul
Dimensions: 216 × 128 × 39 mm · Read range: > 15 m with an external 8 dBi antenna

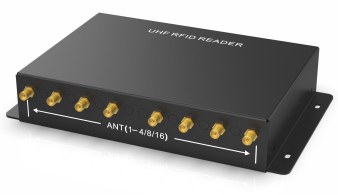

JNR-E801N
Fixed UHF RFID reader for a long read zone, with 900 tags/s peak throughput and RS-232, USB, RS-485 or Wi-Fi backhaul
Dimensions: 216 × 128 × 39 mm · Read range: > 20 m with an external 8 dBi antenna

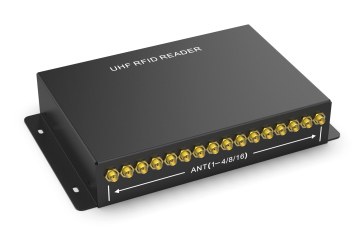

JNR-E1601N
Fixed UHF RFID reader for long-range, high-tag-volume read zones, with 900 tags/s peak throughput and RS-232, USB, RS-485 or Wi-Fi backhaul
Dimensions: 216 × 128 × 39 mm · Read range: > 20 m with an external 8 dBi antenna
Compare the family
| JNR-E401N | JNR-E801N | JNR-E1601N | |
|---|---|---|---|
| Read range | > 15 m with an external 8 dBi antenna | > 20 m with an external 8 dBi antenna | > 20 m with an external 8 dBi antenna |
| Inventory rate | Up to 900 tags/s peak inventory rate | Up to 900 tags/s peak inventory rate | Up to 900 tags/s peak inventory rate |
| Interfaces | RS-232, USB (driver-based), RS-485, TCP/IP, Wi-Fi | RS-232, USB (driver-based), RS-485, TCP/IP, Wi-Fi | RS-232, USB (driver-based), RS-485, TCP/IP, Wi-Fi |
| Protocols | HTTP, HTTPS, MQTT | HTTP, HTTPS, MQTT | HTTP, HTTPS, MQTT |
| Dimensions | 216 × 128 × 39 mm | 216 × 128 × 39 mm | 216 × 128 × 39 mm |
| Operating temperature | -25 to +65 °C | -25 to +65 °C | -25 to +65 °C |
Manufacturer-stated figures. A value the source does not publish is shown as a dash rather than estimated. Frequency band, RF output power and air protocol are shared across the family and listed in the overview above.
Where they fit
Fixed readers for dock doors, conveyor checkpoints and production lines. Pair them with JNA antennas sized to the zone.
Every model in this family is available for evaluation in single units before volume orders. Customization available on request.
FAQ
JNR-E Questions, Answered
Straight answers drawn from the family comparison table above.
What read range does the JNR-E401N achieve?
> 15 m with an external 8 dBi antenna
How fast can the JNR-E401N inventory tags?
Up to 900 tags/s peak inventory rate
Which interfaces does the JNR-E401N provide?
RS-232, USB (driver-based), RS-485, TCP/IP, Wi-Fi
Which protocols does the JNR-E401N support?
HTTP, HTTPS, MQTT
What are the dimensions of the JNR-E401N?
216 × 128 × 39 mm
Can the JNR-E401N be evaluated before a volume order?
Yes. The JNR-E401N is available as a single evaluation unit before volume orders, with customization available on request. Contact us for current lead time and evaluation terms.
Evaluating the JNR-E family?
Tell us the read zone and tag population. We will confirm the right model and antenna pairing.
