JNR-DSE Desktop UHF RFID Readers
Five desktop readers for counter and bench work. The two USB pads type tags straight into any application as keyboard input - nothing to install. The two high-speed models add dense-reader mode and RS-232 / TCP/IP for rapid capture of stacked and batched items. The fifth is a stand-alone terminal: a 19 in. touch display with an on-board Android or Windows OS, for unattended check-in and self-service issuing.
JNXTECH JNR-DSE Desktop UHF RFID Readers
The models
JNR-DSE01
USB desktop reader that presents tags as keyboard input — nothing to install
Dimensions: 150mm(L)*102mm (W)*16mm (H) · Read range: 0–0.5 m typical (depends on power level and tag)
JNR-DSE03
Wider USB desktop reader for keyboard-wedge tag capture at a counter or desk
Dimensions: 320mm(L)*220mm (W)*19mm (H) · Read range: 0–0.5 m typical (depends on power level and tag)

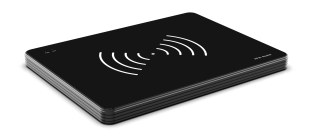

JNR-DSE04
Desktop reader with dense-reader mode for rapid capture of stacked and batched items
Dimensions: 400mm(L)*300mm (W)*27mm (H) · Read range: 0–0.5 m typical (depends on power level and tag)
JNR-DSE06
Large desktop reader with dense-reader mode for high-volume batch capture
Dimensions: 650mm(L)*490mm (W)*35mm (H) · Read range: 0–0.5 m typical (depends on power level and tag)
JNR-NE-E401A-PR
Stand-alone desktop reader with an integrated 19 in. touch display and on-board OS
Dimensions: 450 × 295 × 35 mm (excluding bracket) · Display: 19-inch touch display
Compare the family
| JNR-DSE01 | JNR-DSE03 | JNR-DSE04 | JNR-DSE06 | JNR-NE-E401A-PR | |
|---|---|---|---|---|---|
| Read range | 0–0.5 m typical (depends on power level and tag) | 0–0.5 m typical (depends on power level and tag) | 0–0.5 m typical (depends on power level and tag) | 0–0.5 m typical (depends on power level and tag) | — |
| Inventory rate | — | — | Up to 400 tags/s | Up to 700 tags/s | — |
| Interfaces | USB Type-C, USB 2.0 full speed | USB Type-C, USB 2.0 full speed | RS232, TCP/IP | RS232, TCP/IP | TCP/IP, Wi-Fi |
| Protocol support | — | — | EPCglobal Class 1 Gen 2 / ISO 18000-6C, ISO 18000-6B | EPCglobal Class 1 Gen 2 / ISO 18000-6C, ISO 18000-6B | EPCglobal Class 1 Gen 2 / ISO 18000-6C |
| Power | USB powered | USB powered | 12 V / 5 A | 12 V / 5 A | — |
| Working mode | Driver-free HID, keyboard-wedge output | Driver-free HID, keyboard-wedge output | Dense-reader mode | Dense-reader mode | — |
| Display | — | — | — | — | 19-inch touch display |
| Operating system | — | — | — | — | Android 11 standard; Windows 10 optional |
| Dimensions | 150mm(L)*102mm (W)*16mm (H) | 320mm(L)*220mm (W)*19mm (H) | 400mm(L)*300mm (W)*27mm (H) | 650mm(L)*490mm (W)*35mm (H) | 450 × 295 × 35 mm (excluding bracket) |
Manufacturer-stated figures. A value the source does not publish is shown as a dash rather than estimated. Frequency band, RF output power and air protocol are shared across the family and listed in the overview above.
Where they fit
Desktop pads and a stand-alone touch terminal for item-level check-in, issue counters and document or small-part verification.
Every model in this family is available for evaluation in single units before volume orders. Customization available on request.
FAQ
JNR-DSE Questions, Answered
Straight answers drawn from the family comparison table above.
What read range does the JNR-DSE01 achieve?
0–0.5 m typical (depends on power level and tag)
Which interfaces does the JNR-DSE01 provide?
USB Type-C, USB 2.0 full speed
What are the dimensions of the JNR-DSE01?
150mm(L)*102mm (W)*16mm (H)
How is the JNR-DSE01 powered?
USB powered
How does the JNR-DSE01 present scanned data to a host?
Driver-free HID, keyboard-wedge output
Can the JNR-DSE01 be evaluated before a volume order?
Yes. The JNR-DSE01 is available as a single evaluation unit before volume orders, with customization available on request. Contact us for current lead time and evaluation terms.
Evaluating the JNR-DSE family?
Tell us the read zone and tag population. We will confirm the right model and antenna pairing.
