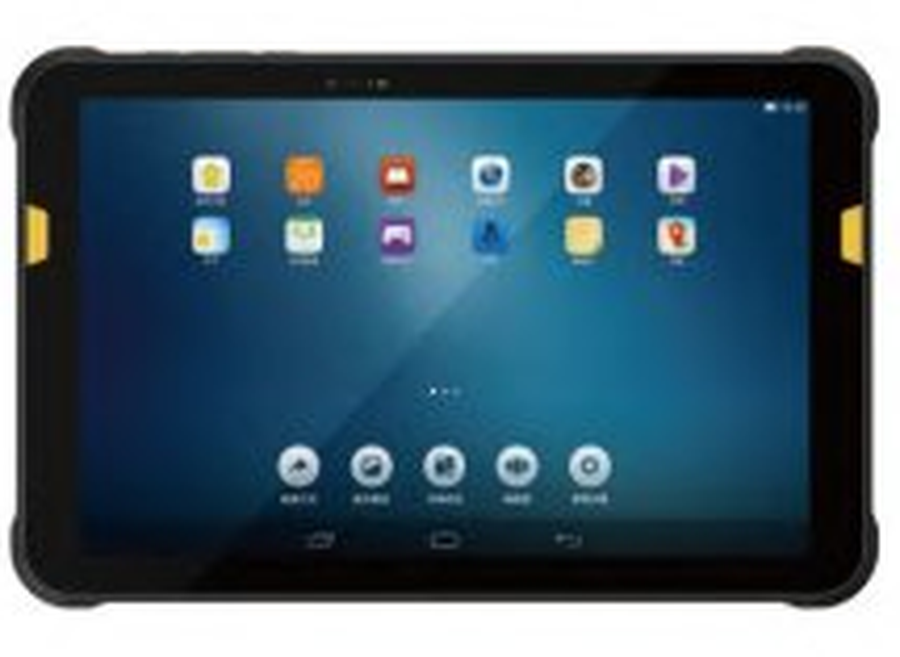

11-Inch Rugged Android Tablet for Large-Screen Workflows
An industrial Android tablet for warehouse, field service and manufacturing — hot-swap 8,000 mAh battery, IP68, 5G connectivity and Wi-Fi 6 on an 11-inch 1200×1920 display.
Why Choose JMDT110
The Biggest Screen. The Biggest Battery.
The 11-inch member of the JNXTECH rugged tablet family — same platform, OS roadmap and support model as the JMDT80, with a larger display and the family's largest hot-swap battery.
11" 1200×1920 IPS Display
A full A4-page-class view for digital SOPs, drawings, dashboards and long forms — with glove/wet-hand touch and active stylus support for shop-floor and field conditions.
8,000 mAh Hot-Swap Power
The largest battery in the family — 3.85 V / 8,000 mAh with optional hot-swap, so crews change packs without shutting down through the longest shifts.
Thin for Its Size
Just 11.2 mm thick and 690 g with battery — IP68 sealing and multiple 1.3 m drops to concrete in a slim, easy-to-mount body.
5G + Wi-Fi 6 + GNSS
5G (optional 4G LTE), Wi-Fi 6 2×2 MIMO with fast roaming, Bluetooth 5.2 and GPS/GLONASS/BeiDou/Galileo + AGPS for enterprise connectivity.
Optional Built-in Scanning
Configure with Zebra SE4710 / SE55 / CM60 imagers behind a physical scan key — large-screen barcode capture with no sled required.
Ideal For —
- Field service — large work orders, digital SOPs, drawings and remote assistance on a full-size view
- Manufacturing — line-side MES/WIP dashboards, quality checklists and shift documentation
- Warehouse & logistics — dock operations, forklift mounting and document-heavy picking/inspection workflows
⚠️ Consider Alternatives If —
The JMDT110 pairs the largest display in the JNXTECH rugged tablet family with the same enterprise platform as the 8-inch JMDT80 — one OS roadmap (Android 16 GMS certified, upgradable to Android 19), one accessory philosophy, one support model. An 11-inch 1200×1920 IPS screen gives crews room for full-page documents, schematics and dashboards that small screens force them to zoom and scroll.
Endurance matches the screen: a 3.85 V / 8,000 mAh battery with optional hot-swap keeps crews working through the longest shifts without rebooting. Glove/wet-hand touch and active stylus support make precision annotation and gloved operation practical, while the physical scan button and optional integrated Zebra SE4710 / SE55 / CM60 imagers turn the tablet into a large-screen scanner when needed.
Rugged by design: IP68 sealing (IEC 60529) and multiple 1.3 m drops to concrete — in an 11.2 mm-thick, 690 g body.
Key Features
- 11" 1200×1920 IPS Display
- Full-page view for documents and dashboards, with multi-point capacitive touch, glove/wet operation, and active stylus support.
- Hot-Swap 8,000 mAh Battery
- The family's largest pack — swappable without shutdown for continuous multi-shift operation.
- Optional Integrated Scanning
- Zebra SE4710 / SE55 / CM60 imagers with a physical scan button — specify scanning when you request a quote.
- One Platform, Two Screen Sizes
- 11-inch JMDT110 and 8-inch JMDT80 share the same platform, OS roadmap and support model — standardize the whole fleet.
- Enterprise Connectivity
- 5G (optional 4G LTE), Wi-Fi 6 2×2 MIMO with fast roaming, Bluetooth 5.2, multi-constellation GNSS, optional fingerprint.
- Deployment-Ready Accessories
- Single charging home base, four-slot battery cradle, four-slot charging cradle, active stylus, wrist/neck/hand straps, leather cover.
Specifications
| Operating System | Android 16 (GMS certified; upgradable to Android 19) |
|---|---|
| Processor | Octa-core, 2 x Cortex-A78 @ 2.4 GHz + 6 x Cortex-A55 @ 2.0 GHz |
| Memory / Storage | Standard: 6 GB RAM + 64 GB ROM; Premium: 8 GB RAM + 128 GB ROM |
| Display | 11" IPS, 1200 x 1920 |
| Touch Panel | Multi-point capacitive, glove / wet-hand operation, active stylus support |
| Button | Power, volume, physical scan button, programmable button, home button; optional home button with fingerprint |
| Scan Engine | Zebra SE4710 / SE55 / CM60 (optional) |
| Camera | Rear: 13 MP PDAF (Premium: 48 MP PDAF); Front: 5 MP FF |
| WWAN | 5G (optional 4G LTE) |
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/ax (Wi-Fi 6), 2x2 MIMO, IPv4/IPv6, fast roaming |
| Bluetooth | Bluetooth 5.2 (BLE) |
| GNSS | GPS + GLONASS + BeiDou + Galileo + AGPS |
| NFC | 13.56 MHz, ISO14443A/B, ISO15693, up to 30 mm |
| SIM | 1 nano-SIM + 1 MicroSD; eSIM optional |
| Battery | 3.85 V / 8,000 mAh; optional hot swap |
| Ingress Protection | IP68 |
| Drop Protection | Multiple 1.3 m drops |
| Operating Temp | -10°C to +50°C |
| Storage Temp | -20°C to +60°C |
| Humidity | 0% to 95% non-condensing |
| ESD Protection | ±15 kV air, ±8 kV touch |
| Audio | Dual superlinear speakers, dual microphones, vibrator, indicator light x 2 |
| Sensors | Tri-accelerometer, light, distance, gyro, e-compass; optional fingerprint |
| I/O Ports | USB Type-C (OTG + charging + earphone), bottom extension Pogo Pin |
| Weight | 690 g (with battery) |
| Dimensions | 280 x 181.5 x 11.2 mm |
| Accessories | USB cable (standard); 5 V / 2 A power adapter, Single Charging Home Base, Four-slot Battery Cradle, Four-slot Charging Cradle, active stylus, wrist strap, neck strap, hand strap, leather cover (optional) |
Applications
- Field Service: Large work orders and digital SOPs, drawings and manuals, remote assistance video calls, customer signature capture.
- Manufacturing: Line-side MES/WIP dashboards, quality checklists, shift handover documentation, machine maintenance logs.
- Warehouse & Logistics: Dock operations and forklift mounting, document-heavy picking and inspection, asset management with optional integrated scanning.
One Platform, Two Screen Sizes
JMDT110 or JMDT80?
Both tablets share the same platform, OS roadmap (Android 16 → 19, GMS certified) and support model. The difference is ergonomics and endurance:
| Spec | JMDT110 — 11-Inch | JMDT80 — 8-Inch |
|---|---|---|
| Display | 11" IPS, 1200 x 1920 | 8" IPS, 1200 x 1920, 600 nits |
| Dimensions | 280 x 181.5 x 11.2 mm | 216 x 134 x 11.6 mm |
| Weight | 690 g (with battery) | 500 g (with battery) |
| Battery | 3.85 V / 8,000 mAh, optional hot swap | 3.85 V / 6,050 mAh, optional hot swap |
| Platform | Android 16 (GMS certified) → 19 · Octa-core 2 x A78 + 6 x A55 · 5G + Wi-Fi 6 · IP68 · 1.3 m drops · Glove/wet/stylus touch | |
Barcode scanning is an optional configuration on the JMDT110 — specify SE4710 / SE55 / CM60 when requesting a quote. Request an evaluation unit.
FAQ
JMDT110 Questions, Answered
Straight answers for specification and compliance checks.
Does the JMDT110 have a built-in barcode scanner?
The JMDT110 can be configured with a built-in Zebra SE4710, SE55 or CM60 imager behind a physical scan key, turning the 11-inch Android tablet into a large-screen barcode scanner for cycle counts, asset checks and dock operations. Scanning is an optional configuration — specify it when requesting a quote.
How big is the JMDT110 battery, and is it hot-swappable?
The JMDT110 runs a 3.85 V / 8,000 mAh battery with optional hot-swap — the largest in the JNXTECH tablet family, sized for multi-shift operation without shutdown.
Does the JMDT110 support 5G connectivity?
Yes. The WWAN configuration supports 5G (with optional 4G LTE), plus Wi-Fi 6 2x2 MIMO with fast roaming, Bluetooth 5.2 and multi-constellation GNSS.
Is the JMDT110 rugged enough for warehouse and field use?
Yes. The JMDT110 offers IP68 sealing, multiple 1.3 m drops to concrete, glove/wet-hand touch and -10°C to +50°C operation — suitable for dock operations, plant floors and outdoor field work.
What is the difference between JMDT110 and JMDT80?
They share the same platform, OS roadmap and support model. JMDT110 is the 11-inch model (280 x 181.5 x 11.2 mm, 690 g, 8,000 mAh battery); JMDT80 is the 8-inch model (216 x 134 x 11.6 mm, 500 g, 6,050 mAh) available in standard, intrinsically-safe and healthcare variants. Choose 11-inch for document-heavy workflows, 8-inch when a lighter tablet is preferred.
Ready to evaluate JMDT110?
Request a quote, evaluation terms, or a technical consultation.
